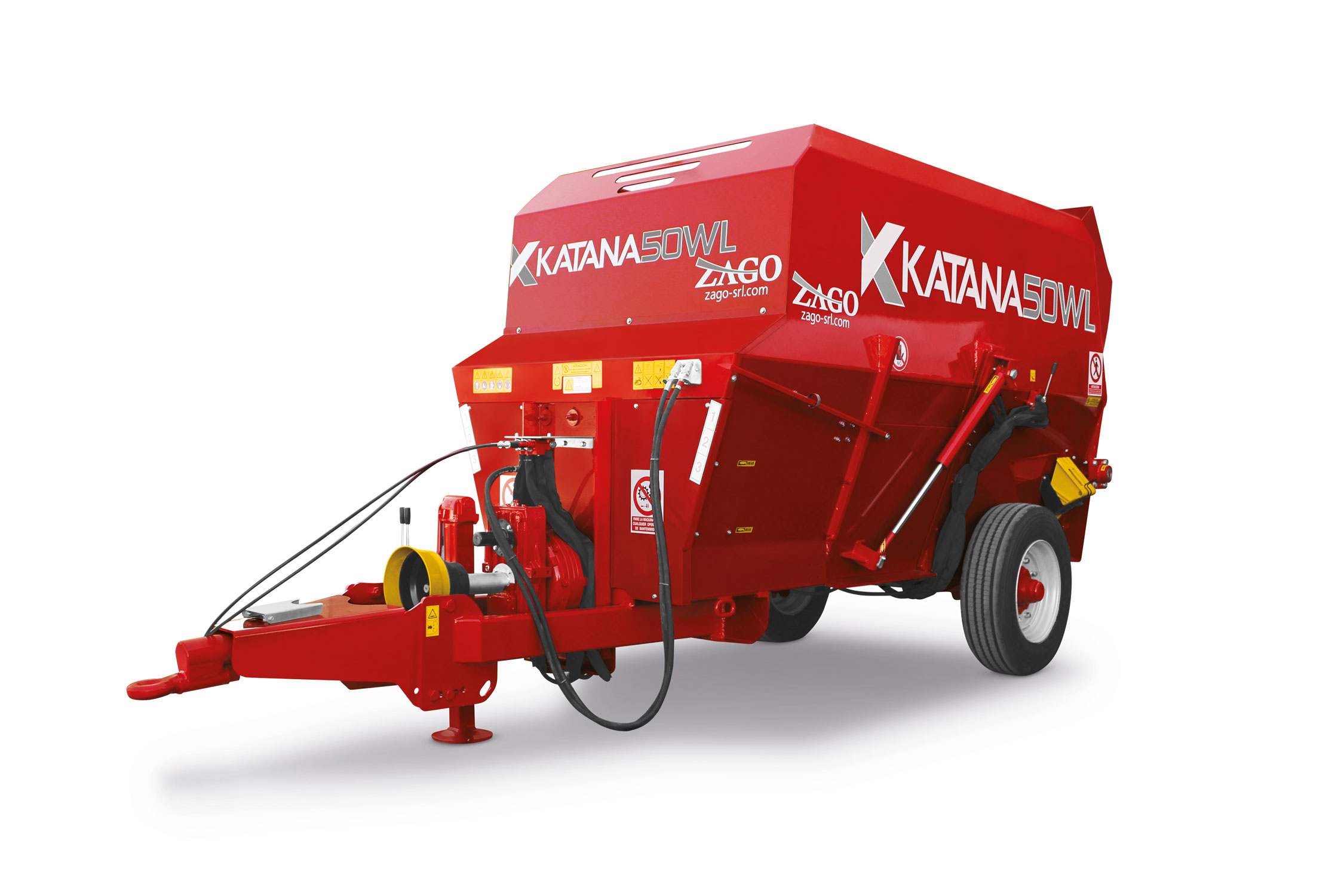

Katana NT

Horizontal trailed mixer with 2 augers - from 5 to 33 m³

NT (without tiller)
5 - 33 m³ / 176 - 1165 ft³
DUO MIX: two central chopping-mixing augers with opposed action
Two central discharge doors with discharge chutes

The KATANA NT horizontal trailed mixer is a machine with two counter-rotating augers.

KATANA NT features the exclusive “DUO MIX” chopping and mixing system with two lower augers, invented and developed by ZAGO, which ensures great working speed and precision and limited power absorption.

The two opposing spiral bottom augers impose a double rotary flow of materials from the front and rear towards the centre of the mixing tank.

The DUO MIX system facilitates perfect chopping of whole cylindrical bales, forage, straw and wrapped bales of wet products and any other type of ingredient required for ration preparation, providing unmatched cutting capacity and efficiency and an above-average homogeneity of mixing.

The quality parameters of the KATANA model:

  • Homogeneous mixing of all products even with partial load and additions
  • Fast forage chopping
  • Direct loading of round and prismatic bales possible
  • Simultaneous bilateral discharge
  • High versatility and reliability
  • Smooth, constant and complete discharge
  • Compact machine suitable for passage through small spaces.

Different cubic volumes and configurations are available to meet all market requirements. In addition, the machine is also available in a stationary version with electric or diesel engine.

Mixing tank

The KATANA NT mixer, with 2 central counter-rotating horizontal augers, features the ‘DUO-MIX’ system that facilitates the chopping-mixing of whole bales and tough long-fibre products.

The mixer can be equipped with a rear loader to facilitate loading operations.


Robust and reliable transmission with high-torque planetary gearbox and high-strength chains with permanent oil-bath lubrication.

There is a sealed lubrication oil tank and optional auger reverser


Stronger rigid chassis for more accurate weighing – 3 weighing cells.


  • 2 central discharge doors
  • Width 750 mm (5-7-9-11-13-15-17 m³) with discharge chutes.
  • Width 950 mm (20-22-24-30-33 m³) with discharge chutes.
  • Fixed or movable discharge conveyors (optional)

Various configurations are available to meet all market requirements.
